Xtract® Oil Sight Glass
Product Description
Portable Offline Filtration Solution for Industrial Lubricants in Wide Range of Applications
Water wreaks havoc on lubrication systems, causing premature wear. With the Xtract® Oil Sight Glass (OSG), users have an immediate visual inspection of the oil and the ability to drain any accumulated water. The OSG is installed directly to a drain port located at the bottom of a reservoir or with an elbow for drain ports located on the side of the equipment. The spring loaded drain valve can be used to drain off any water contamination. Any sediment or particles in the lubricating fluid will matriculate to the OSG where, upon inspection, the user can determine the appropriate action. Constructed of brass hardware with optional stainless steel and a high-performance polyamide bottle, the Xtract® Oil Sight Glass is effective in most operating environments with the maximum temperature rating of 230°F (110°C) and the maximum pressure rating of 265 psi. (Operating temperatures and pressures: 180°F to 265 psi, 203°F to 66 psi, 230°F at atmospheric pressure).
Product Info
Features:
- Clear Visibility: Allows for easy monitoring of oil level and condition.
- Durable Construction: Made from high-performance polyamide with brass hardware, and optional stainless steel fittings.
- Easy Installation: Can be installed directly to a drain port or with an elbow for side-mounted ports.
- Drain Valve: Spring-loaded for removing water contamination and sediment.
Common Specifications:
- Material: High-performance polyamide, brass fittings standard, stainless steel fittings optional
- Recommended Temperature Range: -40°F to 200°F / -40°C to 93°C
- Maximum Operating Pressure: 65 psi / 4.48 bar
- Chemical Compatibility: All gear, mineral, and synthetic oils

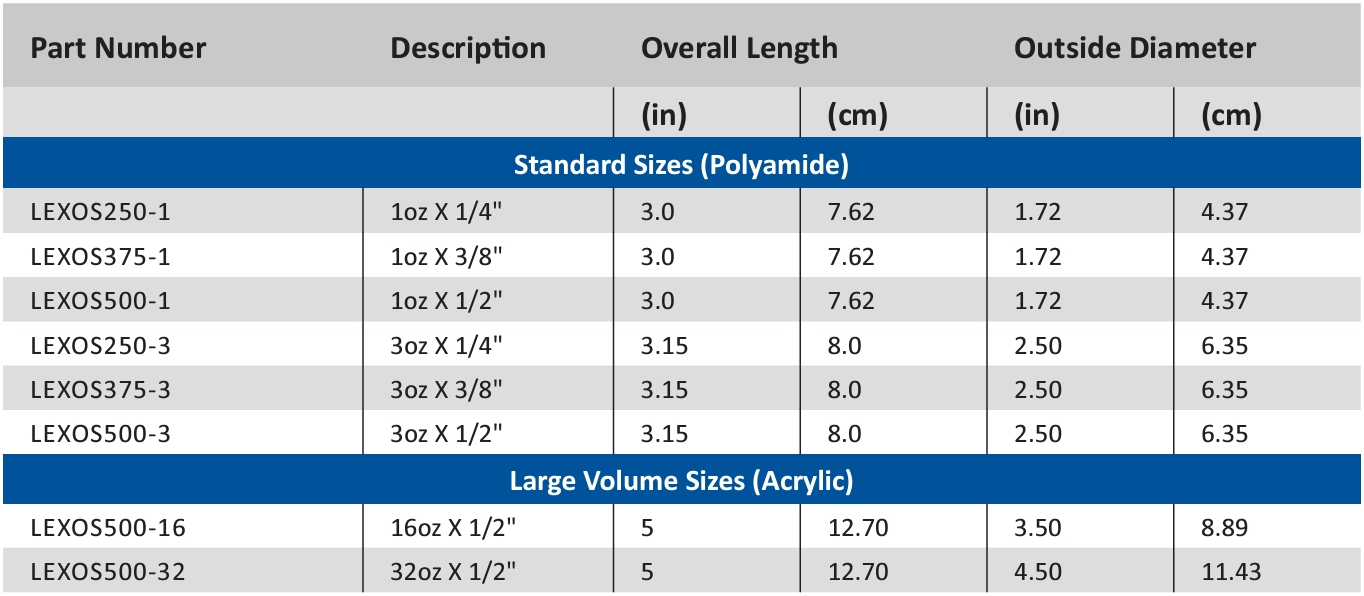

Available Options:
- 1/4″, 3/8″, and 1/2″ NPT ports
- 1oz, 3oz, 16oz, and 32oz sizes
- Stainless steel fittings
- Magnetic drain valve for collecting ferrous material
The Xtract® Oil Sight Glass ensures proactive maintenance, extends equipment life, and reduces costs by allowing early detection of oil issues.
